Fast Pitch Response for Emergency and Stall-Recovery Cues
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.
The fastest pitch rate in the 3TM range, so the cockpit reaches a commanded pitch angle sooner.
Emergency-braking and stall-recovery cues reach the trainee as a sharp motion, carrying the lesson into the real vehicle.
On a slower platform the motion cue arrives late and blurred, so the trainee reacts to the screen instead of the movement and the reflex never forms.
A single PS-SB230 cabinet on 230V single-phase mains runs the platform, with no three-phase supply behind it.
The integrator wires one rack to a single-phase industrial socket and drops a single-seat cockpit into a classroom in a day.
Multi-cabinet rigs add cabling and connectors to verify at acceptance, and that work stretches commissioning.
Electric rotary actuators carry the cockpit instead of hydraulic rams, so there is no fluid and nothing underneath to weep.
A center running sessions all day keeps the platform on its calendar, with no oil to schedule and no leak to mop.
Hydraulic platforms carry a service interval that pulls the unit off the floor, turning paid hours into downtime.
| Axis | Single excursion | Max excursion | Velocity | Acceleration |
|---|---|---|---|---|
| Heave (Vertical) | -127.8/+139.1mm | -127.8/+139.1mm | 266mm/s | 0.5G |
| Pitch | -17.1/+17.1° | -24.1/+22.6° | 60°/s | 250°/s2 |
| Roll | -19.8/+19.8° | -20/+20° | 50°/s | 250°/s2 |
| Payload specifications | ||||
| Payload | 350kg | |||
| CoG height above MPC | <500mm | |||
| Moments of Inertia (Ixx, Iyy, Izz) | 125kg·m2 | |||
| Main dimensions | ||||
| Total Width | 1210mm | |||
| Total Length | 1317mm | |||
| Min Height | 531mm | |||
| Max Height | 798mm | |||
| Product Weight | 260kg | |||
| Power & installation | ||||
| Supply | 230V single-phase (Wye), ground and neutral; industrial CEE connector supplied. For a 120V supply, contact Technical Support. | |||
| Circuit protection | 16A type C circuit breaker. | |||
| RCD/GFCI compatibility | Runs on a standard RCD/GFCI-protected circuit. | |||
| Grounding | High leakage current - permanent solid protective earth, fitted by a qualified electrician. | |||
| Installation | Single-phase install by a qualified electrician; full detail in the manual. | |||
| Power draw | 230 V | |||
| Average Power | 1.5kVA | |||
| Peak Power | 3.4kVA | |||
| Average Current | 7A | |||
| Peak Current | 16A | |||
| Avg Power - Stress Test | 0.8kW | |||
| Avg Power - Typical Game | 0.4kW | |||
Measured at center of gravity with 350 kg payload Tech Sheet | ||||
This chart pairs any two motion axes to show how far they reach together, drawn to scale from the platform's measured limits. Drag the marker anywhere in the plot to read exact values and check whether that pose is reachable.
Traced 1:1 from the platform's measured work-envelope plots. The other axes are held at zero.
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.

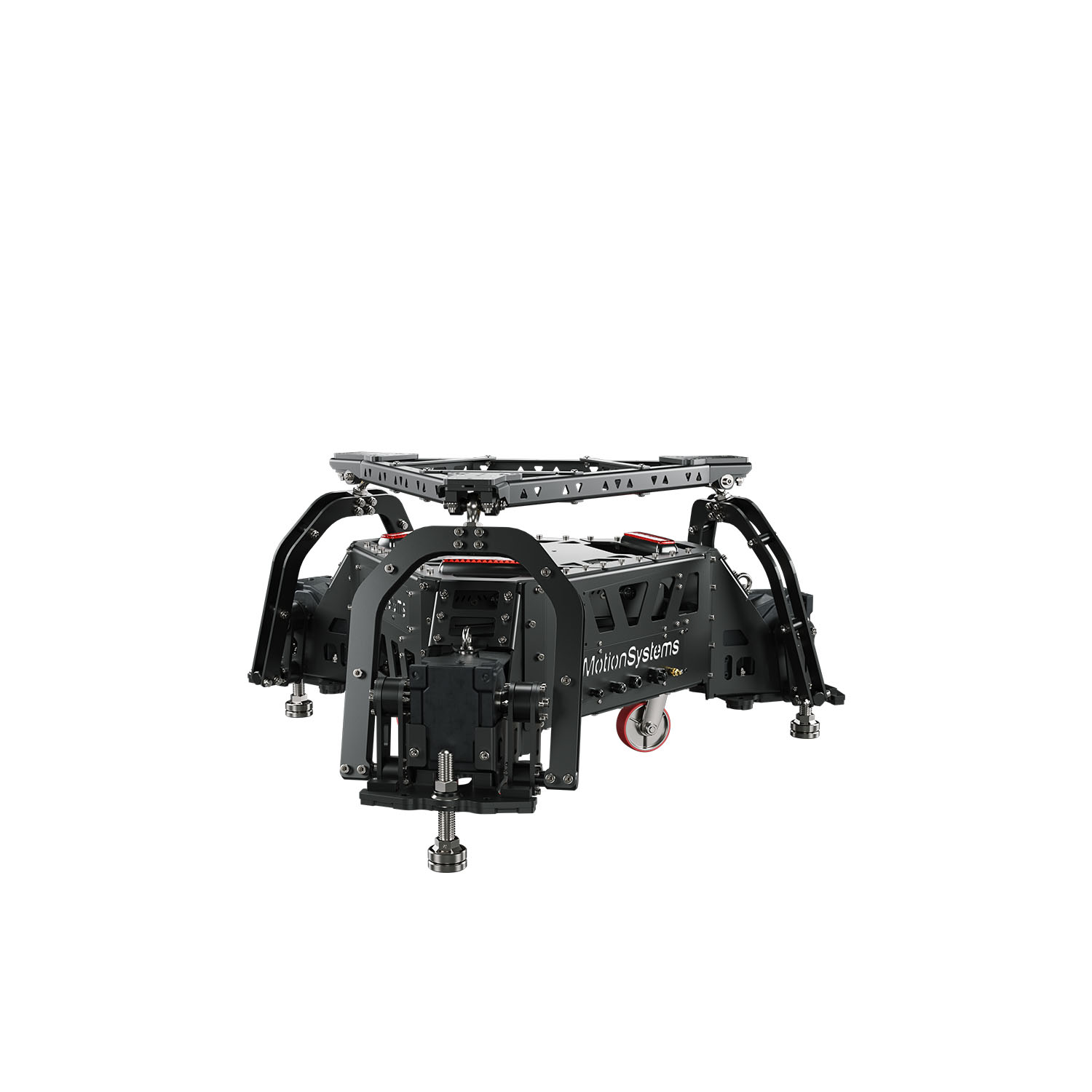

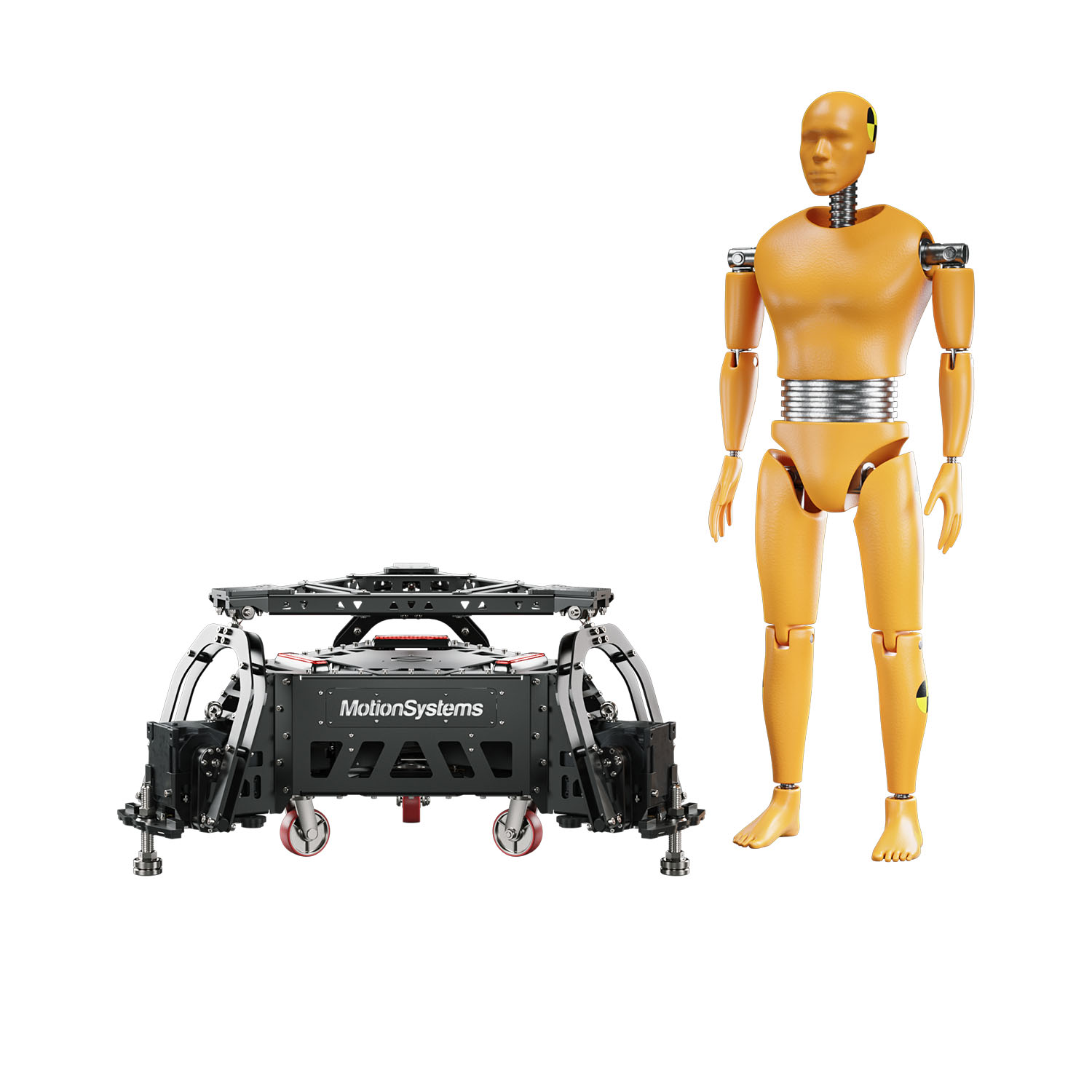

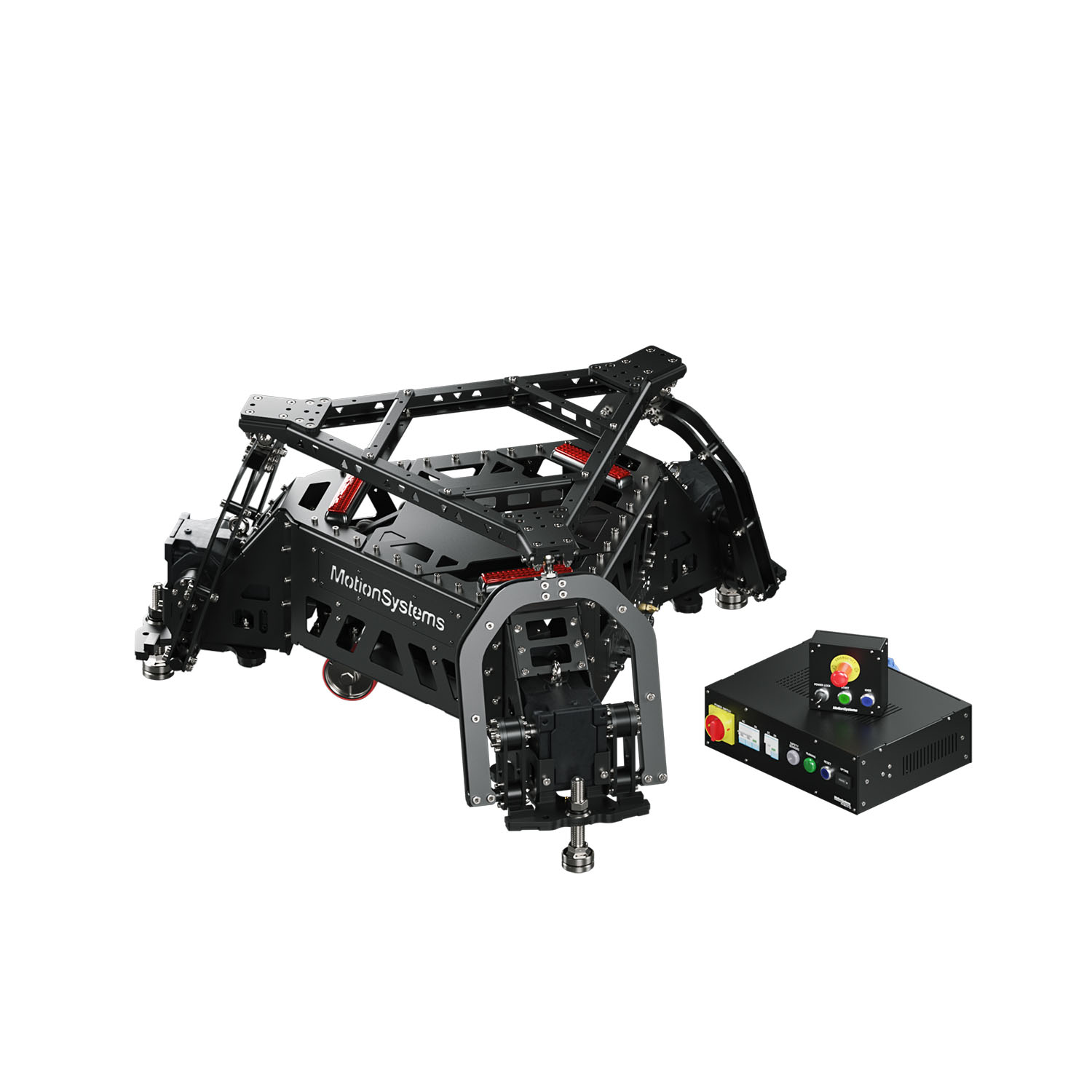

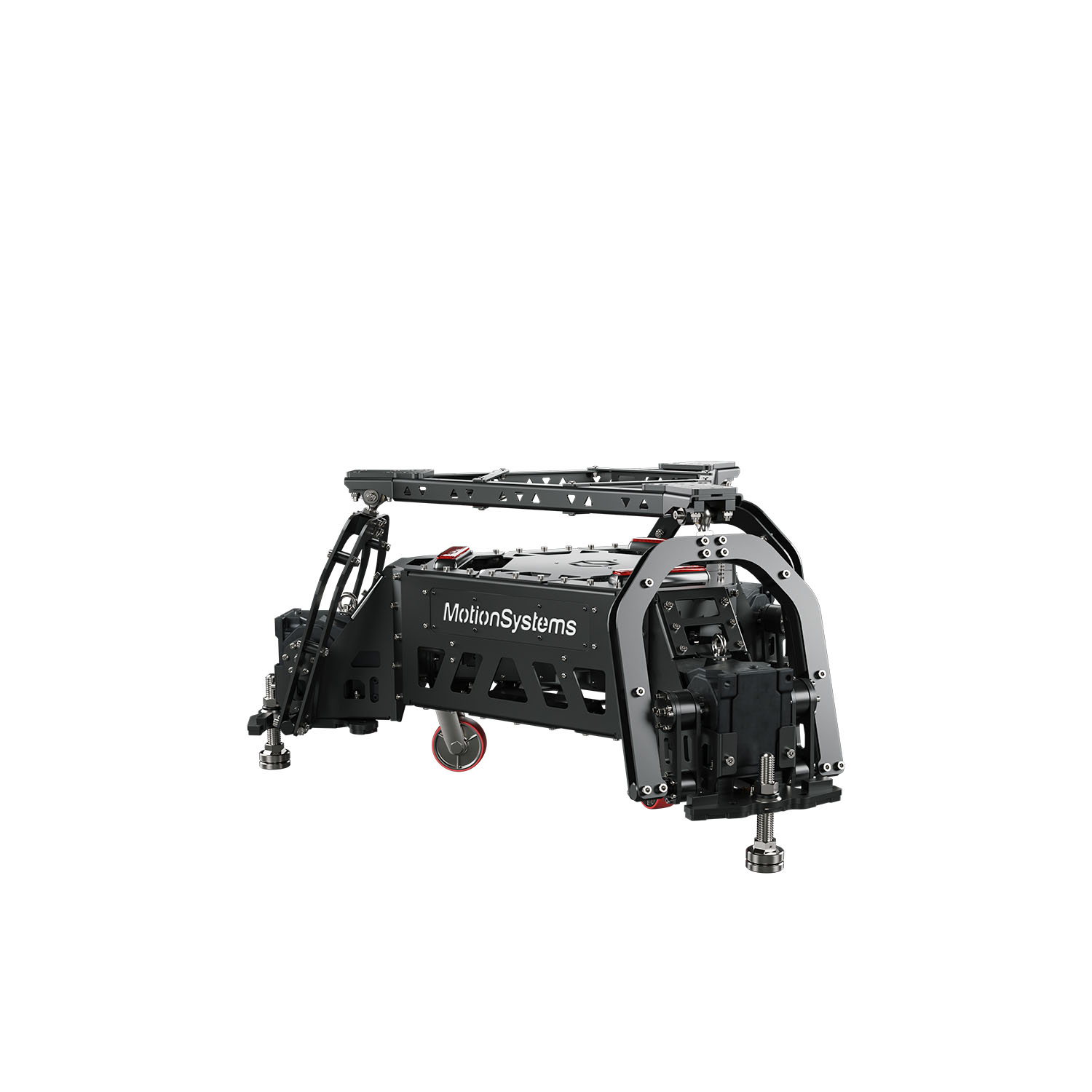

Three electric servo motors each turn a helical-bevel gearbox, and pulling rods on ball joints carry that rotation up to the upper frame. Arranged as a low-profile tripod, the three rotary actuators combine to move the platform in pitch, roll and heave, the three axes that carry braking and cornering cues on the road and pitch, bank and vertical cues in flight.
The result is a platform that the integrator installs with hand tools. On start-up it self-calibrates each actuator position, so every session begins from the same reference and repeats the same way.
For boarding the platform lowers fully to its lowest position, and the wired E-STOP brings motion to a controlled stop on demand.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
Singapore
High-fidelity teleoperation system on the PS-3TM-350 that lets operators drive heavy-duty vehicles remotely. Selected for the Singapore government 5G trials on Sentosa to remotely operate an autonomous road sweeper.
Gdansk, Poland
The VR Crane Simulator provided by Flint Systems, located in the New Competence Center, Poland.
Payload, motion envelope, delivery and software integration - answered up front, ahead of the first call.
The team provides mounting references so the platform drops onto an existing rig. On the software side, the Hardware Imitator M10 - a USB box that mirrors the platform's control interface - is available on request with a first platform order that includes a ForceSeatMI or ForceSeatDI license, and it comes with a 6-month SDK license so the software team can validate integration before delivery. Custom integration runs through the ForceSeat SDK with motion profiles set in ForceSeatPM; where a build calls for it, the engineering team handles any platform firmware changes.
Platforms run on the ForceSeat software stack: ForceSeatPM delivers out-of-the-box support for popular simulation titles, and the ForceSeatMI and ForceSeatDI SDKs expose a documented API for custom telemetry in C, C++, C# and Python, plus plugins for Unity and Unreal Engine.
Yes, on three levels. The catalog spans payload classes from compact cockpits to full-cabin builds, so most projects start with the right standard model and a payload reserve. For oversized cockpits and cabins, the motion envelope and dynamics are then matched to the load - in software on every platform, and with adjustable hardware travel limiters on selected higher-payload models. Where the catalog does not fit, a bespoke build scopes payload, envelope and travel. Share the intended payload, its mass and the motion requirements and the team will confirm the right configuration.
Delivery includes installation guidance that specifies the mounting points and the power and electrical setup per model; site preparation, floor requirements and platform anchoring are the integrator's responsibility. Every platform ships factory-tested and arrives ready for integration into the simulator build.
Professional Series platforms are built to order, typically in 6-10 weeks from payment, with the exact schedule confirmed at quote. With the optional Hardware Imitator M10, software integration runs in parallel with production, so go-live is not gated by delivery. The compact Qubic System line is often in stock and typically ships within 1-3 weeks.
Every Professional Series platform ships with a 24-month warranty, extendable by agreement. Spare-parts manufacturing and diagnostic support continue for the operational life of the platform, with SLA options for fleet and training deployments.
One team scopes the build, carries it through integration and commissioning - with integrator partners where a full simulator is the goal - and stays involved once the rig runs in the field.
A dedicated account manager reads the message directly.
The team analyzes feasibility and prepares questions or an initial concept.
Detailed technical proposal with a platform recommendation, transparent pricing, lead time, and integration timeline.
Ongoing support from the team behind the recommended platform - for the life of the project.
