Most Agile Full-Motion Platform in the 6TM Range
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.
Six axes run from one 230V single-phase industrial CEE socket through the PS-SB230 cabinet - full 6DOF, no three-phase upgrade.
A VR center or small lab installs the platform on a single-phase industrial socket, skips the three-phase fit-out, and starts sessions sooner.
Most 6DOF rigs above this class want three-phase power, so permits, a contractor and downtime come first.
A light upper frame gives this model the highest angular agility in the 6TM range, no loss of travel.
Aerobatic flight, vehicle slides and sharp yaw hit the trainee at the very start of each motion cue, keeping simulator sickness low.
On a heavier platform the same cue builds more gradually, so the trainee senses it coming and the onset softens.
Genuine surge, sway and yaw axes stay present at the entry payload, not approximated by one rotating element standing in for three separate axes.
Helicopter side-slip and lane-change drills stay available at this tier, so a single platform serves both rotorcraft and ground-vehicle curricula.
Without an independent yaw axis, a 3DOF rig approximates the turn or omits it, so those drills carry less detail.
| Axis | Single excursion | Max excursion | Velocity | Acceleration |
|---|---|---|---|---|
| Heave (Vertical) | -93.6/+105.3mm | -93.6/+105.3mm | 270mm/s | 0.17G |
| Surge (Longitudinal) | -103.1/+109.6mm | -124/+122mm | 300mm/s | 0.25G |
| Sway (Lateral) | -96.8/+96.8mm | -114/+114mm | 370mm/s | 0.23G |
| Pitch | -23/+23.8° | -29/+30.8° | 69°/s | 420°/s2 |
| Roll | -24.5/+24.5° | -27.2/+27.2° | 70°/s | 420°/s2 |
| Yaw | -21.8/+21.8° | -25/+25° | 84°/s | 490°/s2 |
| Payload specifications | ||||
| Payload | 150kg | |||
| CoG height above MPC | <500mm | |||
| Moments of Inertia (Ixx, Iyy, Izz) | 60kg·m2 | |||
| Main dimensions | ||||
| Total Width | 1147mm | |||
| Total Length | 1273mm | |||
| Min Height | 336.5mm | |||
| Max Height | 535mm | |||
| Product Weight | 305kg | |||
| Power & installation | ||||
| Supply | 230V single-phase (Wye), ground and neutral; industrial CEE connector supplied. For a 120V supply, contact Technical Support. | |||
| Circuit protection | 25A type C circuit breaker. | |||
| RCD/GFCI compatibility | Runs on a standard RCD/GFCI-protected circuit. | |||
| Grounding | High leakage current - permanent solid protective earth, fitted by a qualified electrician. | |||
| Installation | Single-phase install by a qualified electrician; full detail in the manual. | |||
| Power draw | 230 V | |||
| Average Power | 3.2kVA | |||
| Peak Power | 4.4kVA | |||
| Average Current | 15A | |||
| Peak Current | 30A | |||
| Avg Power - Stress Test | 1.7kW | |||
| Avg Power - Typical Game | 0.9kW | |||
Measured at center of gravity with 150 kg payload Tech Sheet | ||||
This chart pairs any two motion axes to show how far they reach together, drawn to scale from the platform's measured limits. Drag the marker anywhere in the plot to read exact values and check whether that pose is reachable.
Traced 1:1 from the platform's measured work-envelope plots. The other axes are held at zero.
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.

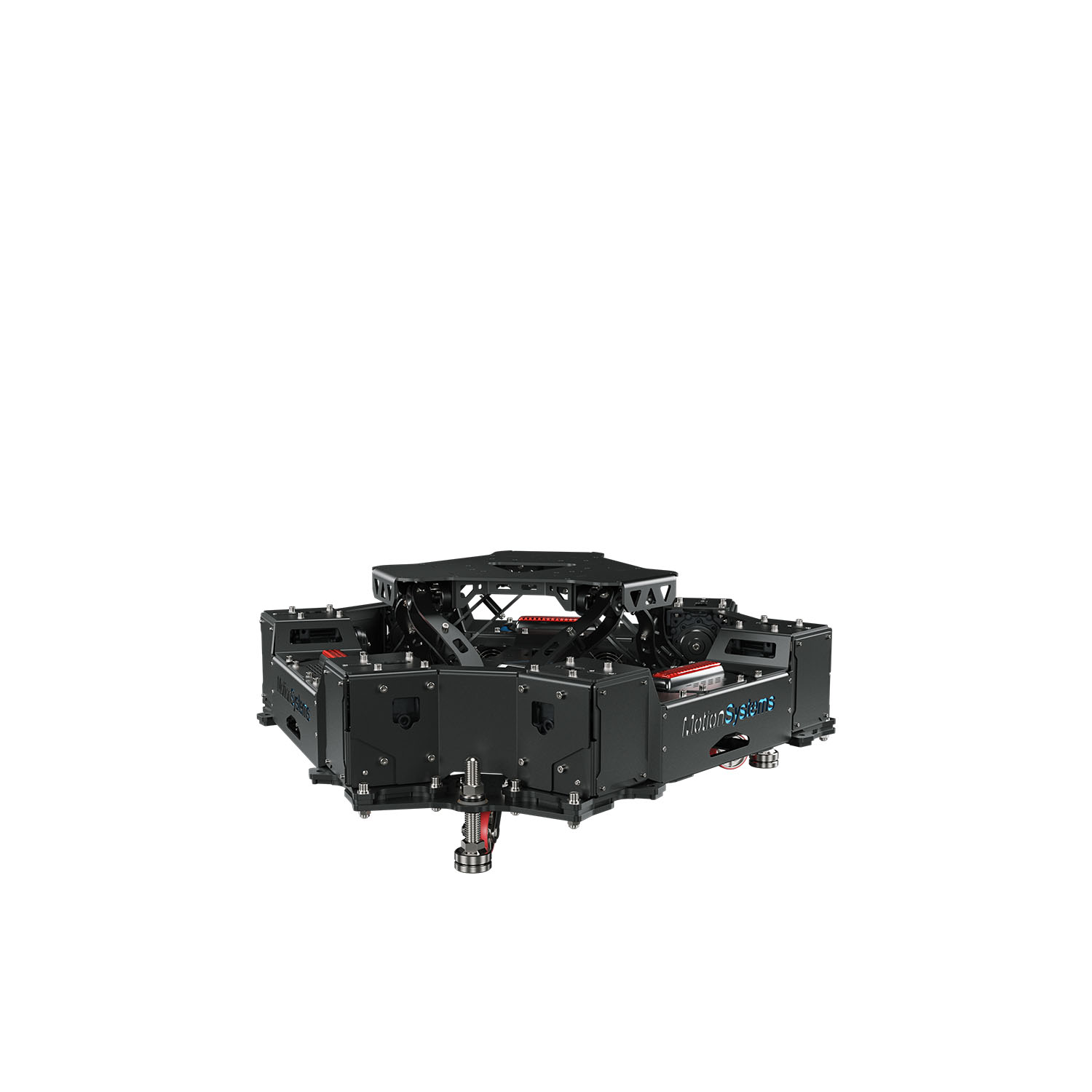

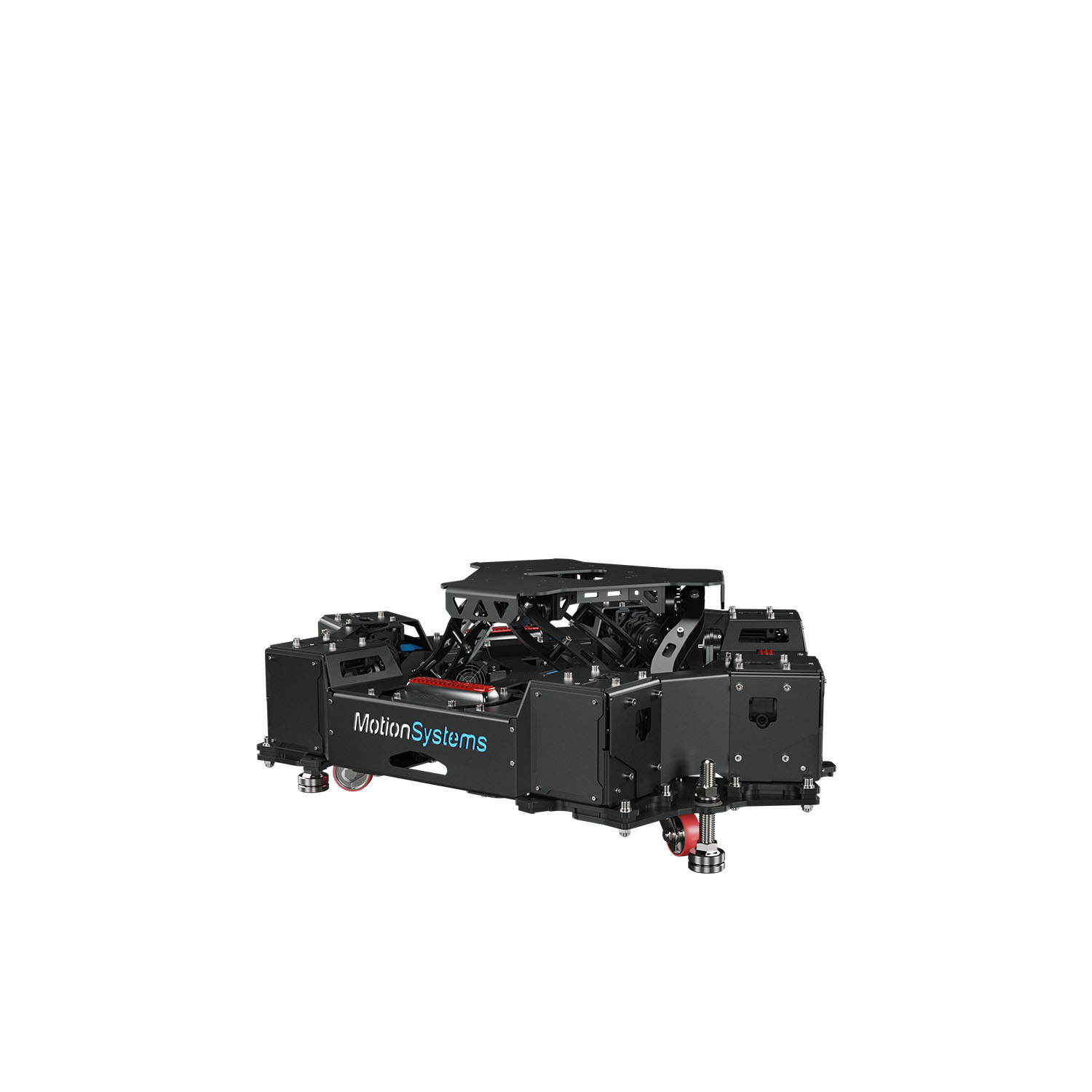

Six electric rotary actuators sit horizontally in a low-profile layout, each rotating a worm gearbox that swings a crank arm to lift its leg of the upper frame. The worm drive keeps this among the most compact platforms in the range - a large gear reduction in one small stage, quiet and self-holding, with just the slight play any gear pair carries. Coordinating the six legs forms all six axes without the height of a tall ball-screw hexapod.
The platform runs from a dedicated 230V single-phase industrial CEE socket through its PS-SB230 cabinet, so install needs no three-phase supply. On start-up it self-calibrates actuator positions, so every run begins from a known reference.
E-STOP brings the platform to a controlled stop, and on shutdown it lowers fully to its boarding position so the operator steps off at floor level.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
Payload, motion envelope, delivery and software integration - answered up front, ahead of the first call.
The team provides mounting references so the platform drops onto an existing rig. On the software side, the Hardware Imitator M10 - a USB box that mirrors the platform's control interface - is available on request with a first platform order that includes a ForceSeatMI or ForceSeatDI license, and it comes with a 6-month SDK license so the software team can validate integration before delivery. Custom integration runs through the ForceSeat SDK with motion profiles set in ForceSeatPM; where a build calls for it, the engineering team handles any platform firmware changes.
Platforms run on the ForceSeat software stack: ForceSeatPM delivers out-of-the-box support for popular simulation titles, and the ForceSeatMI and ForceSeatDI SDKs expose a documented API for custom telemetry in C, C++, C# and Python, plus plugins for Unity and Unreal Engine.
Yes, on three levels. The catalog spans payload classes from compact cockpits to full-cabin builds, so most projects start with the right standard model and a payload reserve. For oversized cockpits and cabins, the motion envelope and dynamics are then matched to the load - in software on every platform, and with adjustable hardware travel limiters on selected higher-payload models. Where the catalog does not fit, a bespoke build scopes payload, envelope and travel. Share the intended payload, its mass and the motion requirements and the team will confirm the right configuration.
Delivery includes installation guidance that specifies the mounting points and the power and electrical setup per model; site preparation, floor requirements and platform anchoring are the integrator's responsibility. Every platform ships factory-tested and arrives ready for integration into the simulator build.
Professional Series platforms are built to order, typically in 6-10 weeks from payment, with the exact schedule confirmed at quote. With the optional Hardware Imitator M10, software integration runs in parallel with production, so go-live is not gated by delivery. The compact Qubic System line is often in stock and typically ships within 1-3 weeks.
Every Professional Series platform ships with a 24-month warranty, extendable by agreement. Spare-parts manufacturing and diagnostic support continue for the operational life of the platform, with SLA options for fleet and training deployments.
