F-35 Fighter Jet Cockpit Simulator

Flight training F-35 fighter jet cockpit simulator powered by Viper Wing

Viper Wing, a global manufacturer and supplier of flight cockpits inspired by F-16, F-18 and F-35 fighters, engaged Motion Systems to supply motion platforms for their flight simulators used by professionals and flight enthusiasts. The simulators are built on the PS-6TM-550 6DOF motion platform. The cockpits are dedicated to both professional customers for pilot training and entertainment purposes.

The main technical assumptions of the fighter simulators were: small size and lightweight body, mobility and ease of transport, and the 200-250 VAC Single Phase power requirements. These requirements proved crucial and let the team match the right motion system to this application. The fighter jet cockpit simulator is based on the 6DOF motion platform PS-6TM-550 with payload up to 550 kg - enough to carry the cockpit with equipment and a pilot.

“We are proud to deliver the best multi pilot fighter jet simulator experience, based on leading software available for consumer market. We offer unmatched price to functionality ratio. Fastest delivery and relative ease of maintenance are also very important factors, as we prepare each of our unit with one, built-in, controlling custom PC Workstation.” - Marek Szozda, CEO Viper Wing

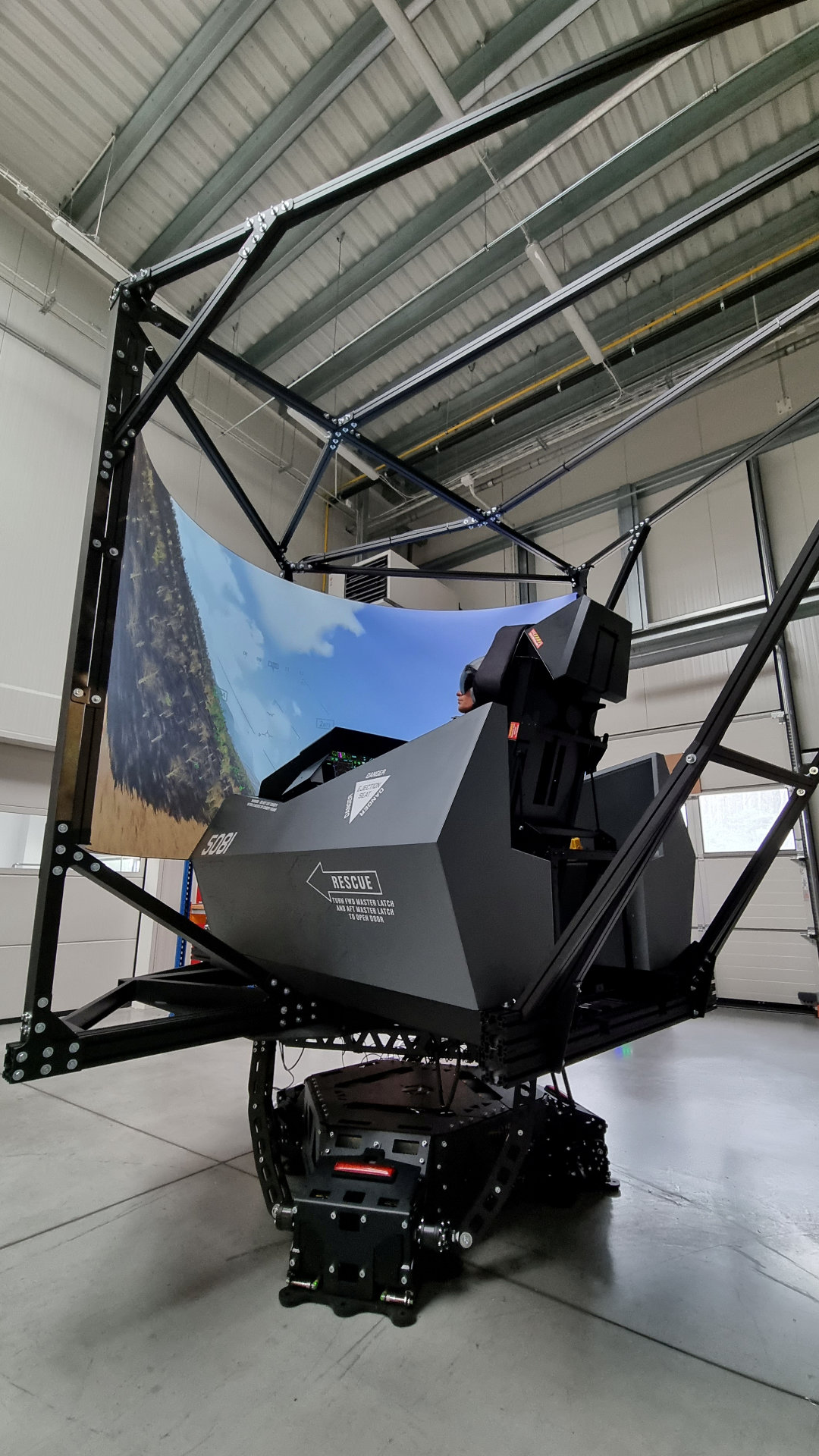

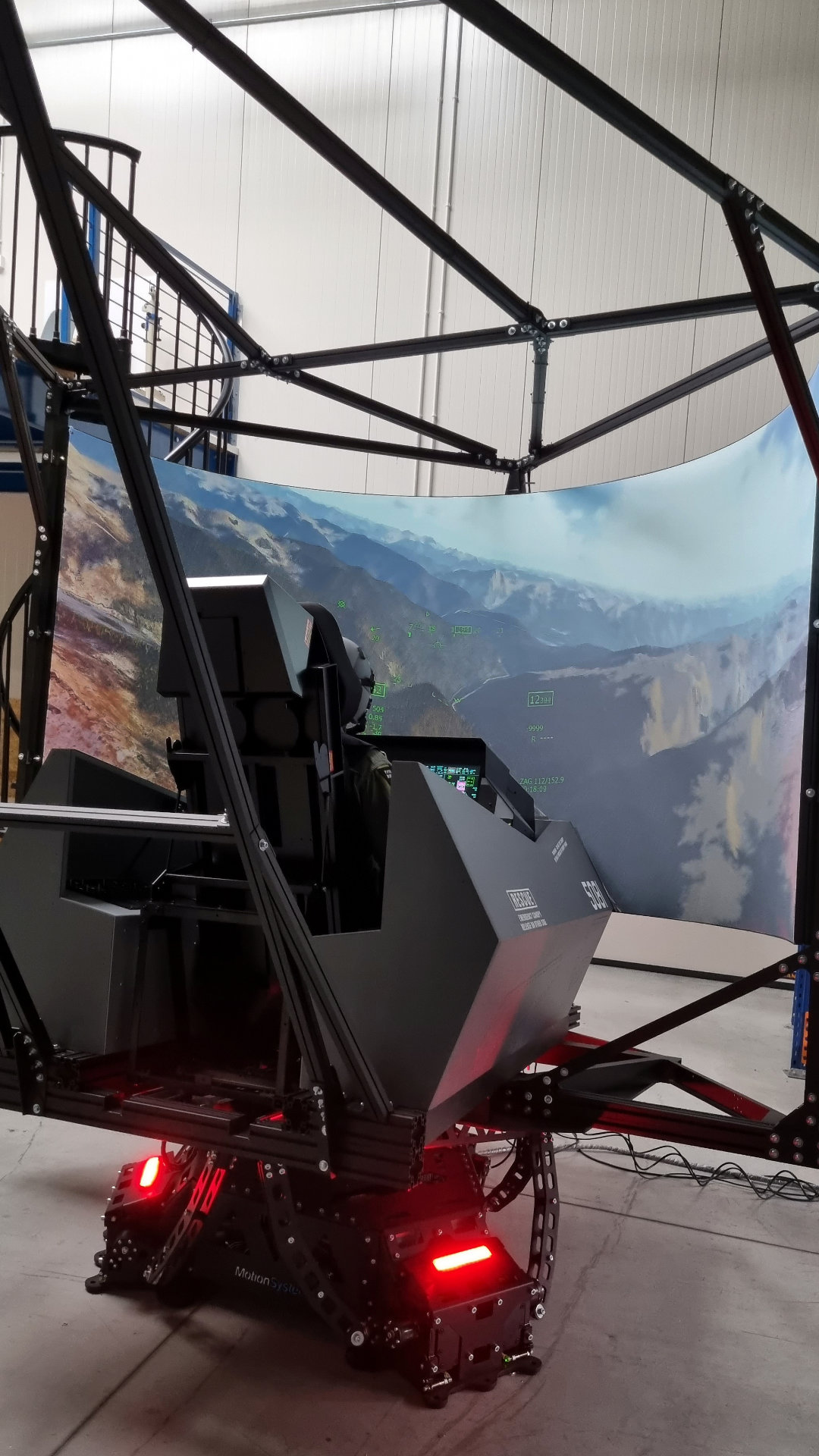

Viper Wing’s simulators perfectly work in VR, AR and MR environment. Thanks to the appropriately selected platform, Viper created a universal tool that, depending on the needs, can be used with XR, but also with the use of a screen with professional 4K laser projector. The platform allowed Viper Wing to build a structure that integrates all the elements including the projection surface and the mounting of a large projector. Mixed reality simulation is made possible thanks to Viper Wing’s close collaboration with Varjo - the world’s leading manufacturer of VR and MR headsets - and the integration of the motion platform control software (ForceSeatPM) with the MR headset. In addition, the VR HeadWay feature included in the ForceSeatPM software lets users enjoy simulation with greatly reduced simulator-sickness symptoms.

Read more about VR HeadWay motion compensation.

Mixed Reality-based training devices enable pilots and flight enthusiasts to practice more frequently due to their affordability and portability. As a supplement to traditional fixed training devices like dome-based or full flight simulators, VR/MR-based training provides increased repetitions and sets, which helps compress the learning timeframe.

Fighter jet simulation experience

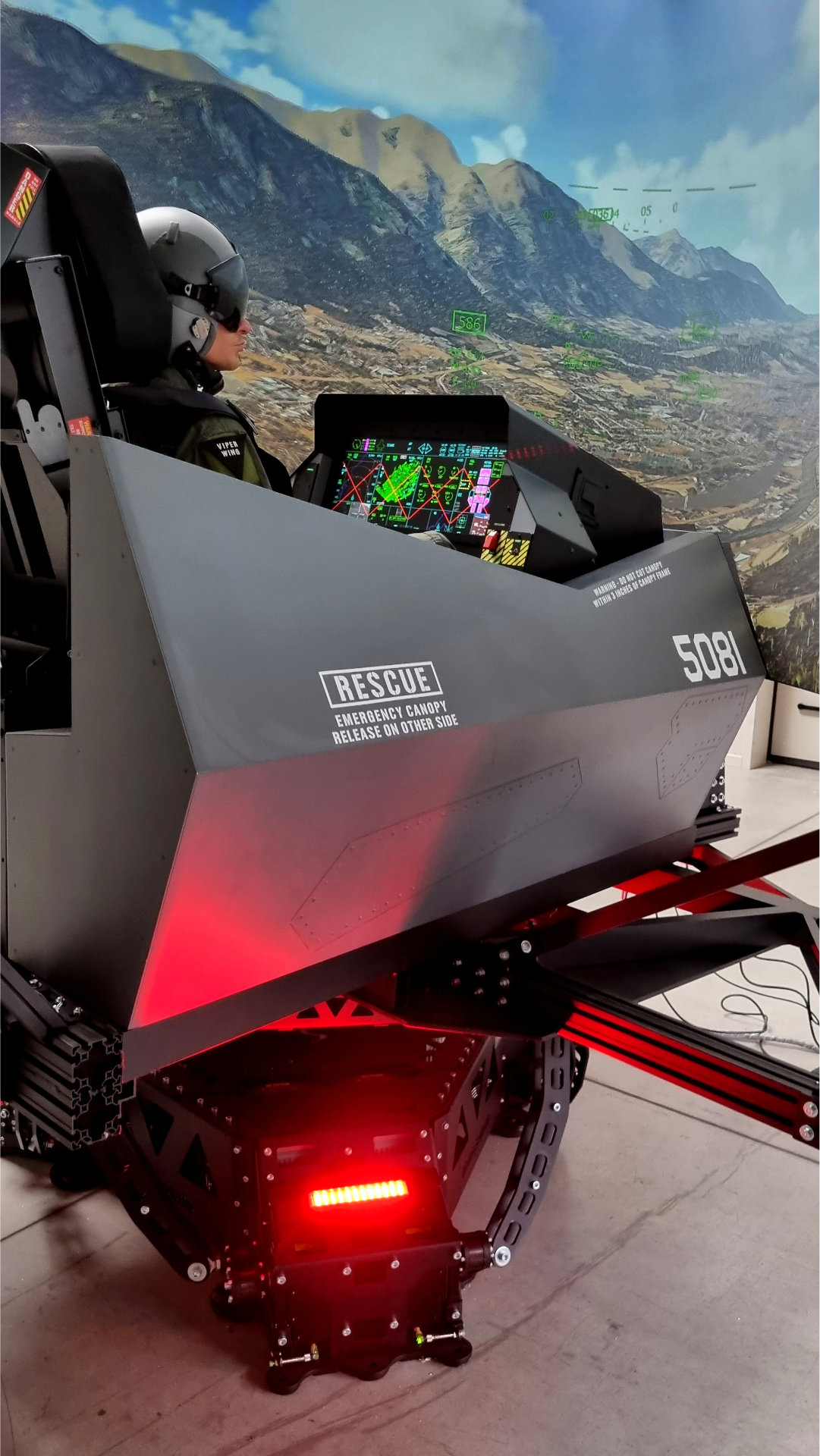

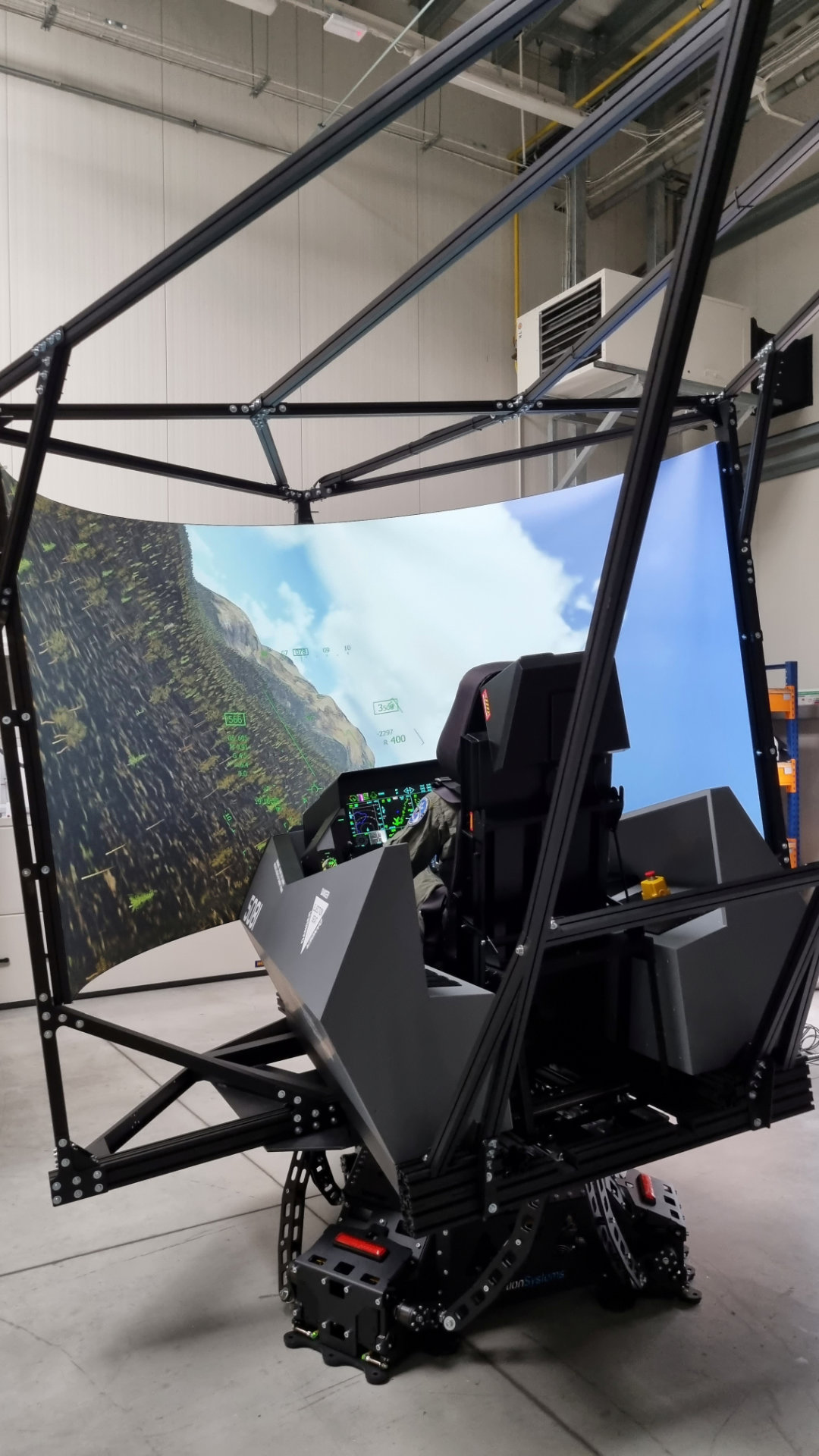

The simulator is the 5th generation, fully physical fighter jet cockpit, mainly used in countries that have F-35 fighters in their units. The F-35 inspired cockpit is delivered as a single unit or as part of a multi-component, networked environment for use in pilot training. The high-fidelity full aluminum cockpit is delivered assembled, ready for take-off, with the fuselage covered in sheet metal and placed on a mobile platform on wheels. A powerful PC workstation is built in and configured. The fuselage is placed on a 6DOF motion platform. In case of several units connected in the network, Viper Wing delivers Administrator’s Command Control Station for management and communication with the pilots.

Motion Systems considers this one of the best implementations of Mixed Reality in flight training. It marks a clear step forward in pilot training and advanced entertainment.
