Entry Low-Profile Tripod in Less Than One Square Meter
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.

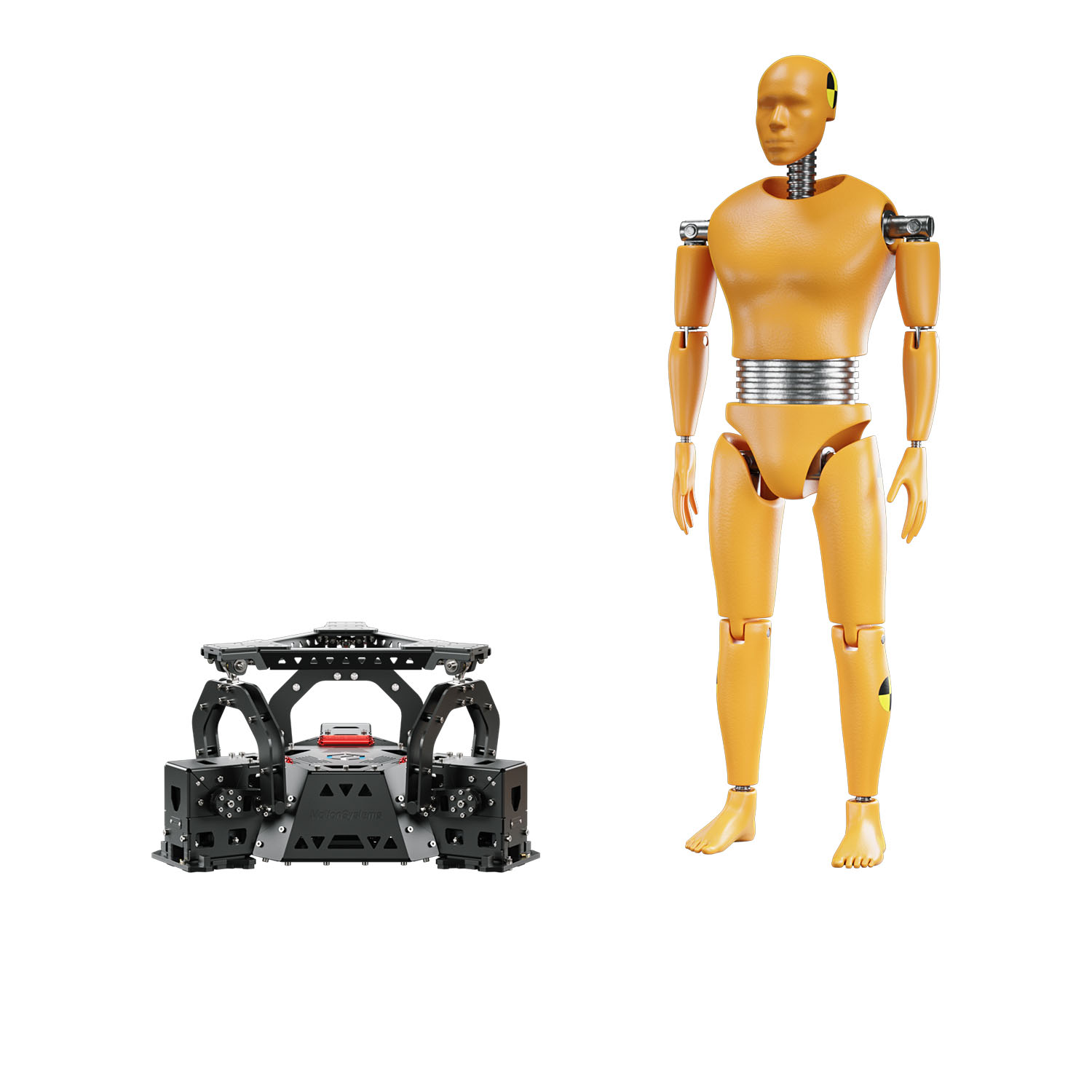

The lightest 3TM installs with hand tools in under one square meter, with the mounting interface documented for the integrator.
A VR center or classroom takes delivery on a standard floor, with no forklift or loading dock, and opens the station that day.
A heavier platform ships on a pallet and needs forklift access, ruling it out of the cramped rooms where this compact tripod still fits.
Single-phase 230V power, roughly 0.3 kW in typical use, runs from a dedicated industrial CEE socket - no three-phase feed.
A multi-station operator powers each kiosk from a single-phase industrial socket, with no three-phase panel upgrade, holding every fit-out within budget.
The trade-off on a three-phase platform is a panel upgrade and inspection that delay commissioning by weeks.
Three electric servo motors drive compact worm gearboxes, so the platform runs with no hydraulic circuit, pump or reservoir.
The operator books commercial sessions back to back without oil supply, leak checks or fluid disposal, so the platform keeps earning.
A hydraulic alternative, by contrast, carries oil-change cycles that pull a station offline for hours at a stretch.
| Axis | Single excursion | Max excursion | Velocity | Acceleration |
|---|---|---|---|---|
| Heave (Vertical) | -87.6/+93.3mm | -87.6/+93.3mm | 230mm/s | 0.14G |
| Pitch | -18/+18° | -25.1/+23.9° | 51°/s | 340°/s2 |
| Roll | -20.9/+20.9° | -20.8/+20.8° | 53°/s | 330°/s2 |
| Payload specifications | ||||
| Payload | 200kg | |||
| CoG height above MPC | <500mm | |||
| Moments of Inertia (Ixx, Iyy, Izz) | 65kg·m2 | |||
| Main dimensions | ||||
| Total Width | 794mm | |||
| Total Length | 838mm | |||
| Min Height | 392mm | |||
| Max Height | 573mm | |||
| Product Weight | 100kg | |||
| Power & installation | ||||
| Supply | 230V single-phase (Wye), ground and neutral; industrial CEE connector supplied. For a 120V supply, contact Technical Support. | |||
| Circuit protection | 16A type C circuit breaker. | |||
| RCD/GFCI compatibility | Runs on a standard RCD/GFCI-protected circuit. | |||
| Grounding | High leakage current - permanent solid protective earth, fitted by a qualified electrician. | |||
| Installation | Single-phase install by a qualified electrician; full detail in the manual. | |||
| Power draw | 230 V | |||
| Average Power | 1.3kVA | |||
| Peak Power | 2.2kVA | |||
| Average Current | 6A | |||
| Peak Current | 12A | |||
| Avg Power - Stress Test | 0.7kW | |||
| Avg Power - Typical Game | 0.3kW | |||
Measured at center of gravity with 200 kg payload Tech Sheet | ||||
This chart pairs any two motion axes to show how far they reach together, drawn to scale from the platform's measured limits. Drag the marker anywhere in the plot to read exact values and check whether that pose is reachable.
Traced 1:1 from the platform's measured work-envelope plots. The other axes are held at zero.
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.

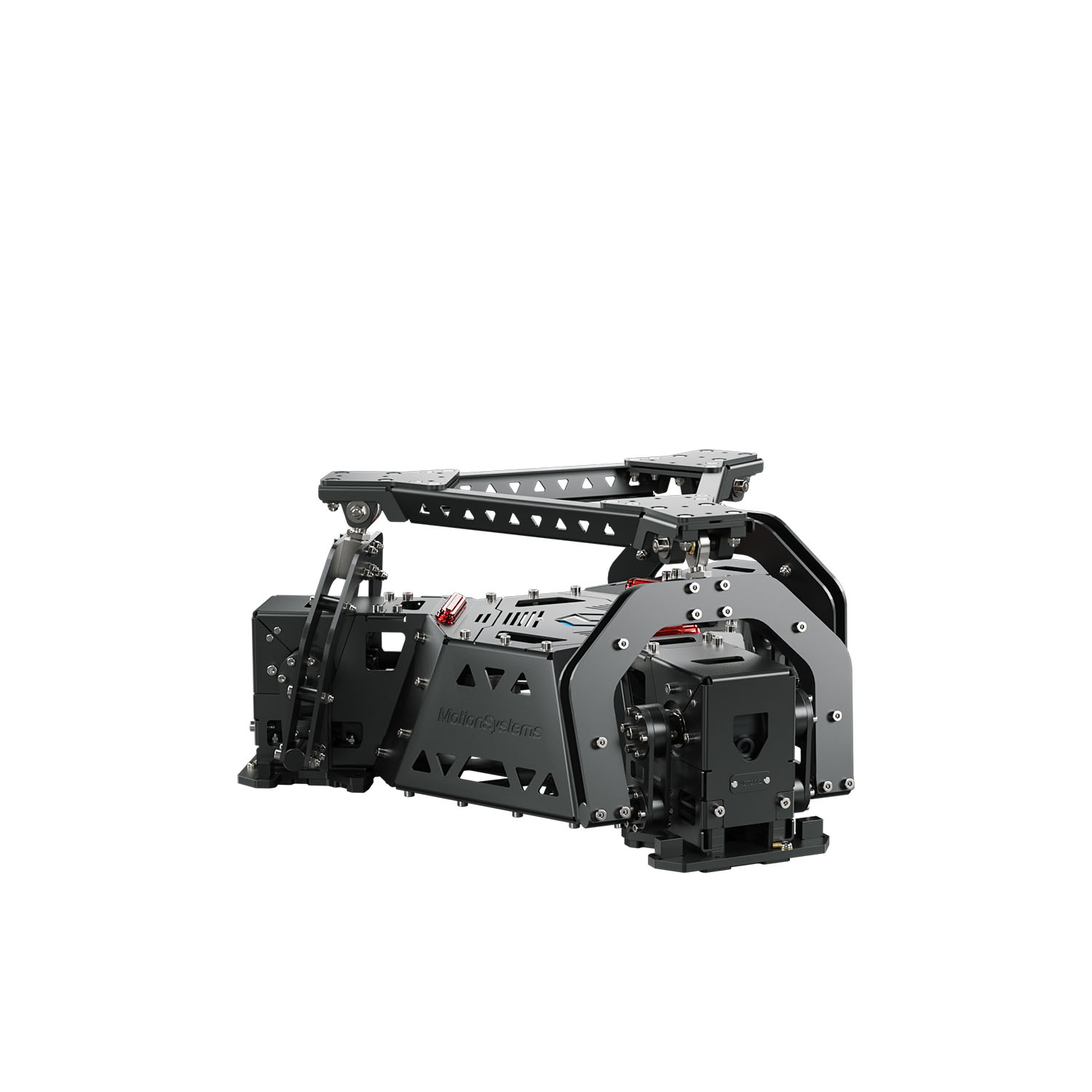

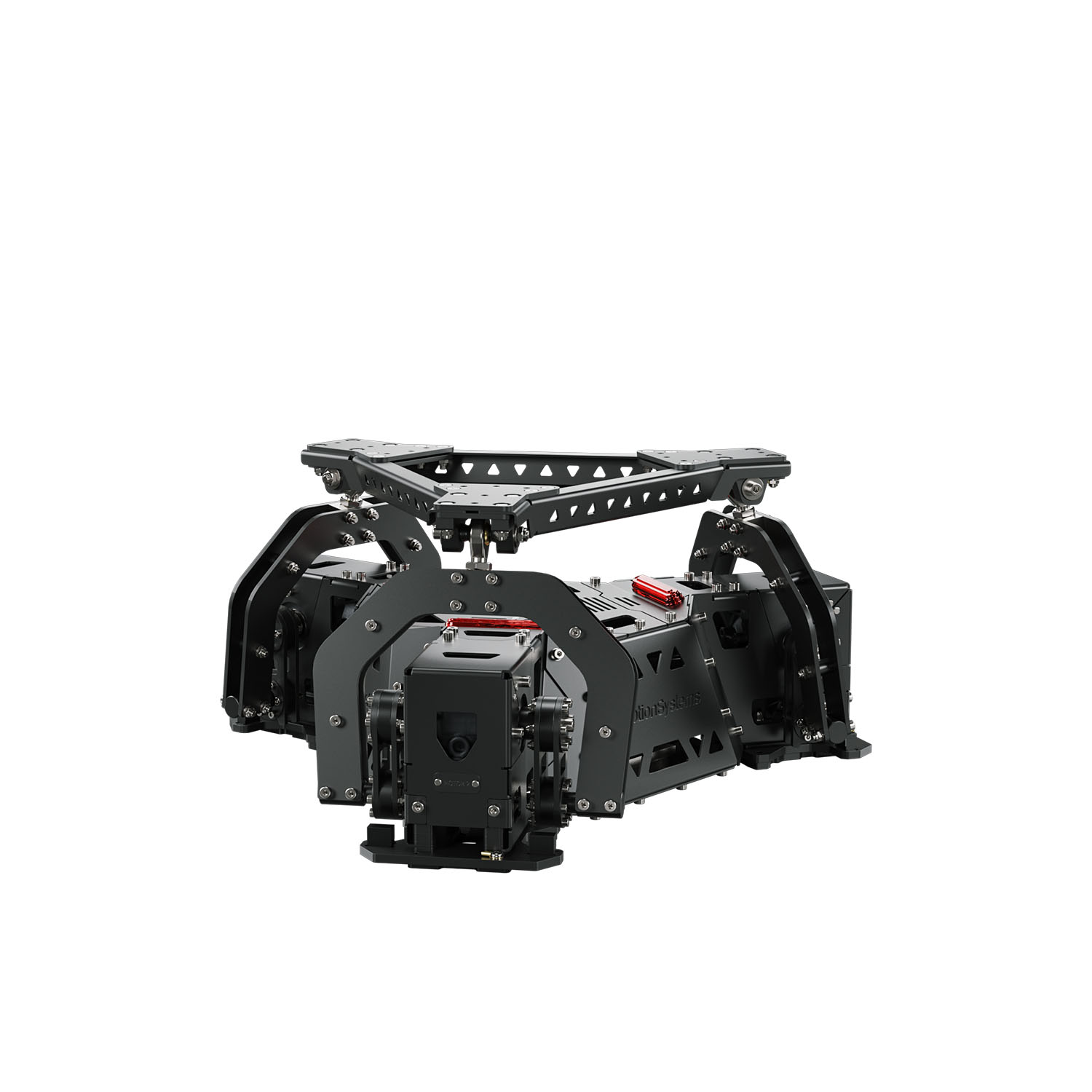

Three electric rotary actuators each turn a worm gearbox, and pulling rods on ball joints carry that rotation up to the upper frame. The worm drive keeps this among the most compact platforms in the range - a large gear reduction in one small stage, quiet and self-holding, with just the slight play any gear pair carries. Arranged as a low-profile tripod, the three rotary actuators combine to move the platform in pitch, roll and heave - the axes that read as braking, cornering and road texture.
The platform installs with hand tools and runs from a dedicated 230V single-phase industrial CEE socket, so no three-phase feed is needed. On start-up it self-calibrates each actuator position, so every session begins from the same reference.
For boarding the platform lowers fully to its lowest position, and the wired E-STOP brings motion to a controlled stop on demand.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
Payload, motion envelope, delivery and software integration - answered up front, ahead of the first call.
The team provides mounting references so the platform drops onto an existing rig. On the software side, the Hardware Imitator M10 - a USB box that mirrors the platform's control interface - is available on request with a first platform order that includes a ForceSeatMI or ForceSeatDI license, and it comes with a 6-month SDK license so the software team can validate integration before delivery. Custom integration runs through the ForceSeat SDK with motion profiles set in ForceSeatPM; where a build calls for it, the engineering team handles any platform firmware changes.
Platforms run on the ForceSeat software stack: ForceSeatPM delivers out-of-the-box support for popular simulation titles, and the ForceSeatMI and ForceSeatDI SDKs expose a documented API for custom telemetry in C, C++, C# and Python, plus plugins for Unity and Unreal Engine.
Yes, on three levels. The catalog spans payload classes from compact cockpits to full-cabin builds, so most projects start with the right standard model and a payload reserve. For oversized cockpits and cabins, the motion envelope and dynamics are then matched to the load - in software on every platform, and with adjustable hardware travel limiters on selected higher-payload models. Where the catalog does not fit, a bespoke build scopes payload, envelope and travel. Share the intended payload, its mass and the motion requirements and the team will confirm the right configuration.
Delivery includes installation guidance that specifies the mounting points and the power and electrical setup per model; site preparation, floor requirements and platform anchoring are the integrator's responsibility. Every platform ships factory-tested and arrives ready for integration into the simulator build.
Professional Series platforms are built to order, typically in 6-10 weeks from payment, with the exact schedule confirmed at quote. With the optional Hardware Imitator M10, software integration runs in parallel with production, so go-live is not gated by delivery. The compact Qubic System line is often in stock and typically ships within 1-3 weeks.
Every Professional Series platform ships with a 24-month warranty, extendable by agreement. Spare-parts manufacturing and diagnostic support continue for the operational life of the platform, with SLA options for fleet and training deployments.
One team scopes the build, carries it through integration and commissioning - with integrator partners where a full simulator is the goal - and stays involved once the rig runs in the field.
A dedicated account manager reads the message directly.
The team analyzes feasibility and prepares questions or an initial concept.
Detailed technical proposal with a platform recommendation, transparent pricing, lead time, and integration timeline.
Ongoing support from the team behind the recommended platform - for the life of the project.
