Pre-Assembled Venue Cockpit With a Built-In Yaw Axis
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.
Four actuators add a yaw axis on top of heave, roll and pitch, pivoting at the front legs - the only 4DOF compact in the Qubic line.
Heading cues like a lane change or helicopter rotation reach the operator as real rotation, not a stacked separate base.
A 3DOF compact skips yaw, leaving the heading cue on screen and guests missing the rotation they read as immersion.
Heavy Duty handles guest hours, Performance everyday play, and Q-MODE peak race response, each chosen per session in ForceSeatPM.
One cockpit serves families gently by day and enthusiasts hard by night, widening the audience without a second platform.
A single-envelope platform fixes one tuning choice at purchase, over-serving one crowd and leaving the other underwhelmed.
The cockpit arrives factory-wired, both power cabinets and Motion-Lock already fitted, drawing from a single-phase venue outlet.
An operator connects power and a PC, mounts the wheelbase, pedals and seat, then runs paid sessions the same day.
Component-shipped rigs need on-site assembly, so prep days push opening back and labor cost climbs.
| Axis | Range | Q-MODEVelocity / Acceleration | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heave (Vertical) | -51.8/+51.5mm | 800mm/s/0.9G | |||||||||||||||||||||||||||||||||||
| Pitch | -5.5/+5.5° | 40°/s/500°/s2 | |||||||||||||||||||||||||||||||||||
| Roll | -7.6/+7.6° | 110°/s/1400°/s2 | |||||||||||||||||||||||||||||||||||
| Yaw | -6.1/+6.1° | 75°/s/900°/s2 | |||||||||||||||||||||||||||||||||||
| Voltage | 230V | ||||||||||||||||||||||||||||||||||||
| Payload specifications | |||||||||||||||||||||||||||||||||||||
| Payload | 150kg(basic, no accessories) | ||||||||||||||||||||||||||||||||||||
| Main dimensions | |||||||||||||||||||||||||||||||||||||
| Total Width | 1195mm | ||||||||||||||||||||||||||||||||||||
| Total Length | 1716mm | ||||||||||||||||||||||||||||||||||||
| Min Height | 998mm | ||||||||||||||||||||||||||||||||||||
| Max Height | 1101mm | ||||||||||||||||||||||||||||||||||||
| Product Weight | 280kg | ||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||
| Connection | USB | ||||||||||||||||||||||||||||||||||||
| Stroke | 100mm | ||||||||||||||||||||||||||||||||||||
| Vibration Range | 0-100Hz | ||||||||||||||||||||||||||||||||||||
| Latency | <8ms | ||||||||||||||||||||||||||||||||||||
| Architecture | 4DOF(with Traction Loss) | ||||||||||||||||||||||||||||||||||||
| Noise Level | 57.5-66dB(home-friendly) | ||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Peak values in Q-Mode, which requires a 230 V supply. Tech Sheet | |||||||||||||||||||||||||||||||||||||
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.
The QS-BT1 Seat Belt Tensioner pulls on the racing harness in sync with the motion - braking, cornering and traction loss on track, climbs and G-loading in flight, all become physical. Fully compatible with the QS-V20.

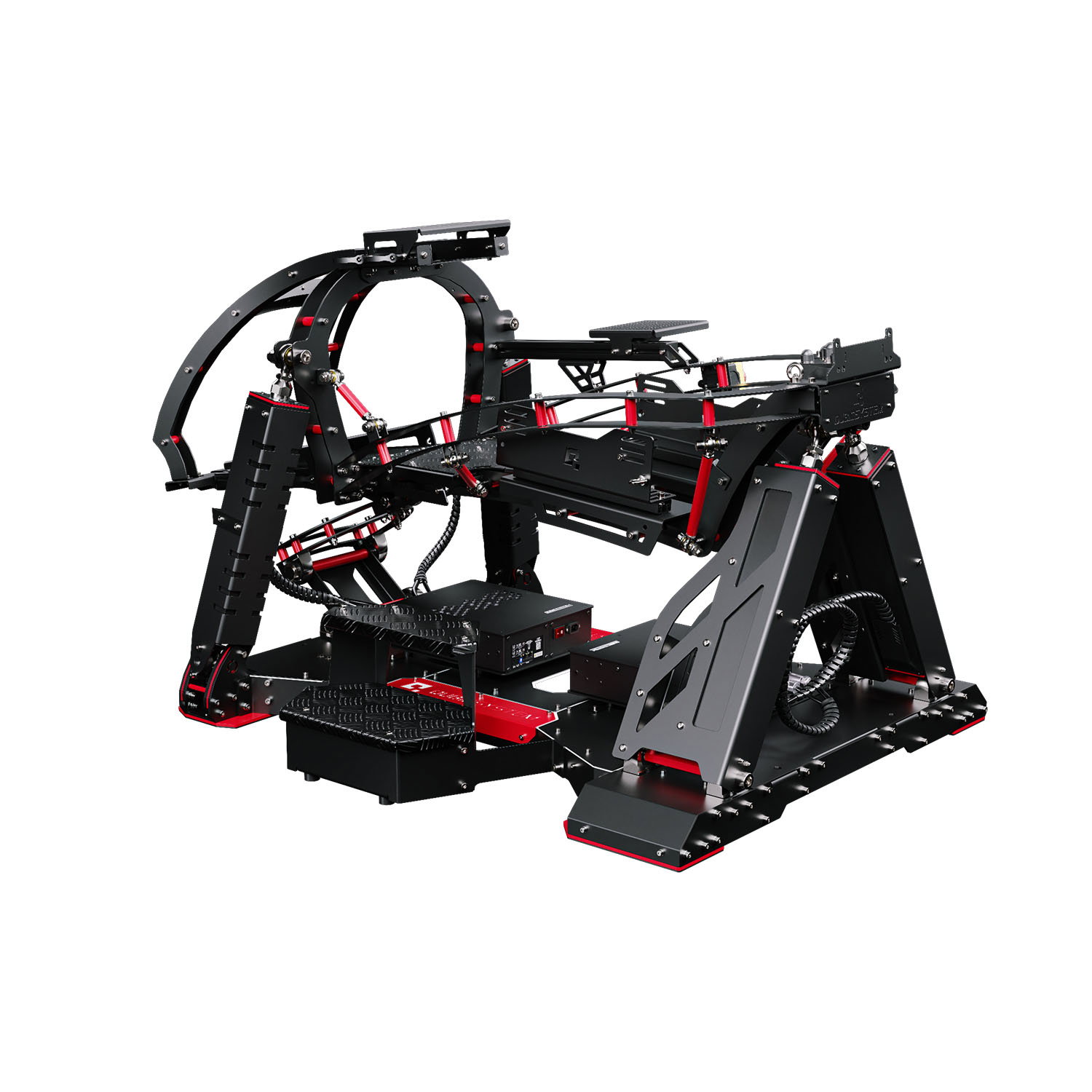

The QS-V20 is a 4DOF cockpit on four electric linear actuators, each driven by its own servo drive. The M10 controller turns ForceSeatPM telemetry into coordinated extension, so heave, roll and pitch read as road, cornering lean and braking dive. The yaw point sits at the front actuators, so the rear steps out under power - the oversteer a stacked 3DOF base cannot form.
Two power cabinets feed the actuators from a single-phase 120/230V supply, so the cockpit drops into a standard venue outlet without three-phase wiring, and Q-MODE calls for the 230V supply. Cabinets and frame ship factory-wired, and the operator selects a mode per session in ForceSeatPM. Motion starts under 8 ms. The cockpit ships pre-assembled as standard, and can be prepared as modules on request for tight-access sites.
Between sessions a Motion-Lock switch stops the cockpit, and with no holding brakes it lowers to its boarding position.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
Finland
Wärtsilä's Marine Small Boat Trainer mounts a physical cockpit on a QS-V20 motion platform and adds mixed-reality headsets - a setup that, per Wärtsilä, cuts visual-infrastructure cost 40-80% against a projector-based bridge simulator.
Merchtem, Belgium
Sim Racing Center Merchtem, run by SimBelgium, is one of Belgium's most advanced sim racing centers.
Athens, Greece
SimClub is a leading sim racing center in Greece, giving racing enthusiasts a highly immersive way to train and compete.
Setup, supported titles, latency and software integration - answered up front, ahead of the first call.
Qubic System sets up in hours: the platform and ForceSeatPM auto-detect supported simulator titles with pre-tuned profiles, no code required. The customer supplies the PC, title and controls; the ForceSeat SDK covers custom integration.
ForceSeatPM auto-detects a wide range of supported simulator titles with pre-tuned profiles, and the ForceSeat SDK and API cover custom telemetry for bespoke integrations.
Yes. Qubic System accepts add-ons such as the QS-BT1 seat-belt tensioner and the QS-CH2 module, so a rig can extend the effects and axes it delivers over time.
The ForceSeat SDK streams telemetry in C, C++, C# and Python with Unity and Unreal Engine plugins, and the Hardware Imitator M10 lets integration code be written and validated in days, before the platform arrives.
Qubic System hardware is often in stock and typically ships within 1-3 weeks, with the exact date confirmed at order. Integration work does not have to wait for delivery - the ForceSeat SDK lets custom development start ahead of the hardware.
Every platform ships with a warranty, diagnostic support and access to spare parts, with the exact term listed in the box above. Extended service options are available for fleet and training deployments.
One team scopes the build, carries it through integration and commissioning - with integrator partners where a full simulator is the goal - and stays involved once the rig runs in the field.
