UDP Proxy - Wreckfest 2 + SimHub

UDP proxy/forwarder setup for sharing Wreckfest 2 telemetry between platform manager and SimHub.

1 Introduction

When the game provides telemetry data via UDP (like Wreckfest 2 does), under normal circumstances only one application can receive it on local computer. It means that by default you cannot have both ForceSeatPM and dashboard application running at the same time on the same UDP port for this game.

The solution is to configure the game to send telemetry data directly to ForceSeatPM and then use the built-in UDP proxy/forwarder to transmit it to third-party applications.

Information

It is always best to first send the data from the game to the Platform Manager to prevent any lag in the platform's operation. Minor delays in the dashboard display are usually imperceptible.

2 SinHub configuration

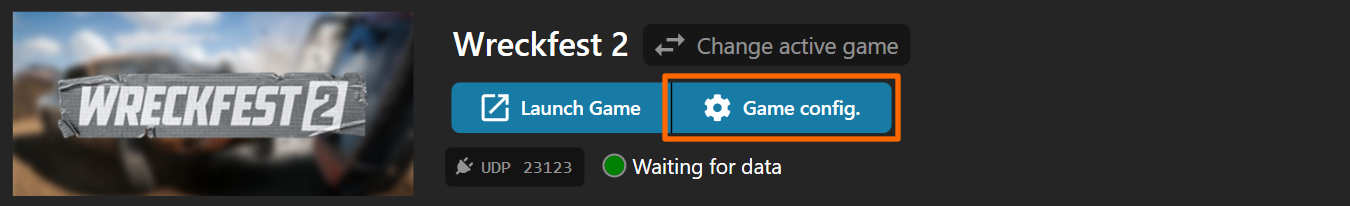

1. Open SimHub application, switch to Wreckfest 2 game and click Game Config.

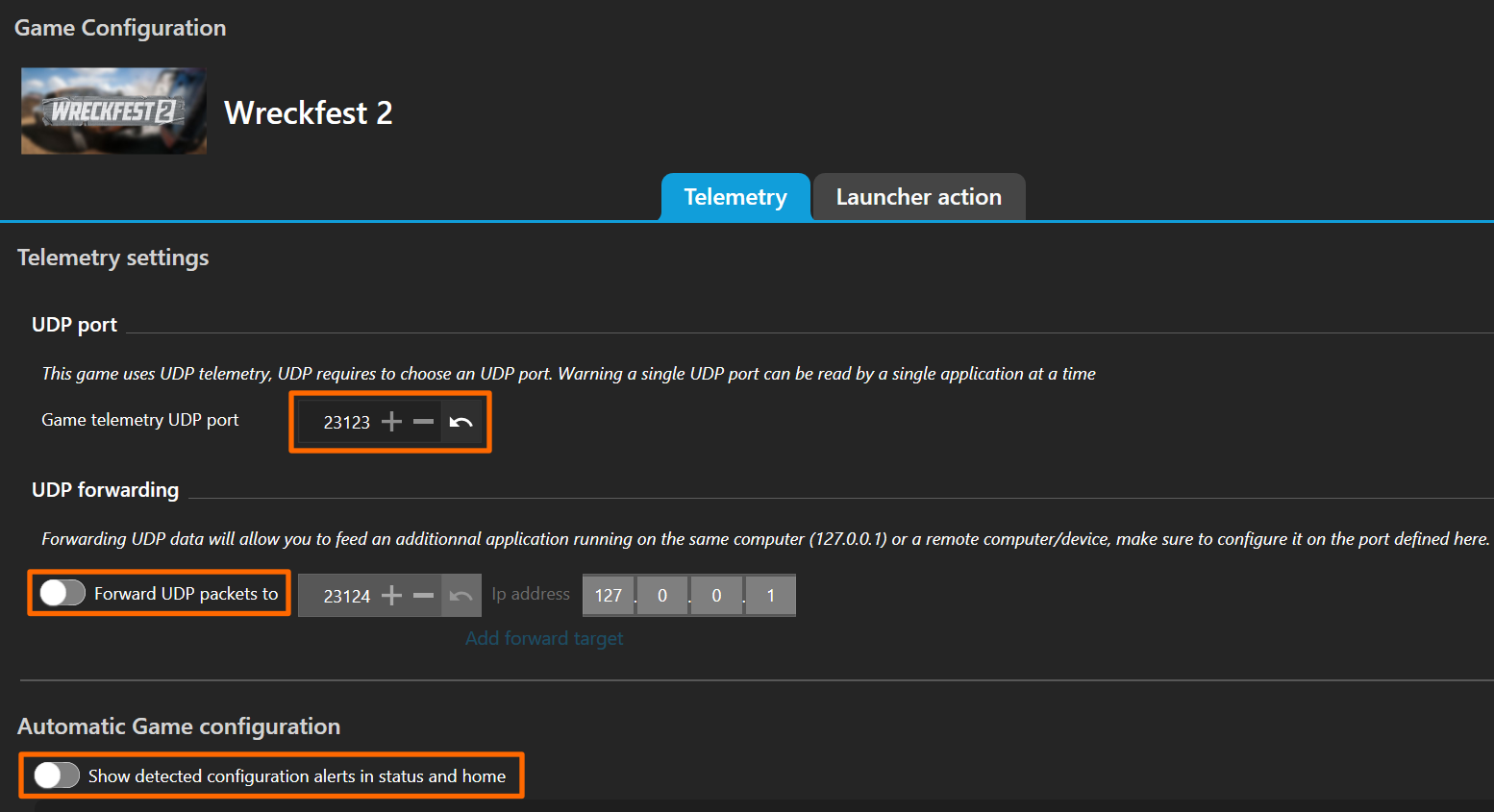

2. Enter 23123 in Game telemetry UDP port, uncheck Forward UDP packet to and uncheck Show detected configuration alerts in status and home.

Warning

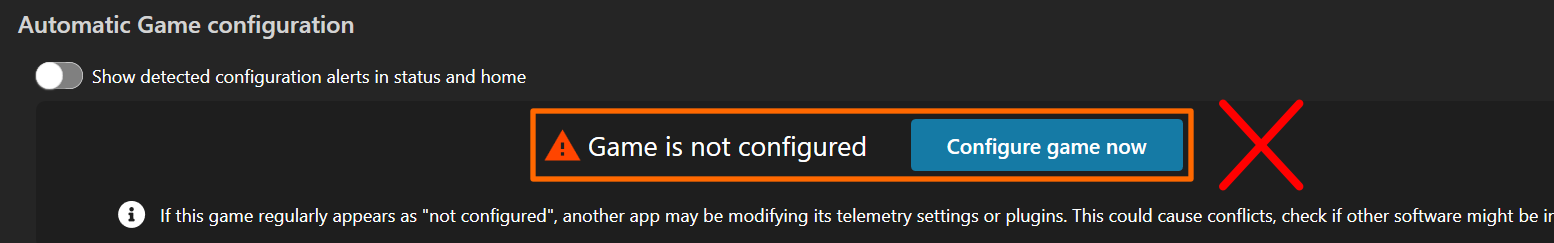

DO NOT click Configure game now as it will corrupt the configuration.

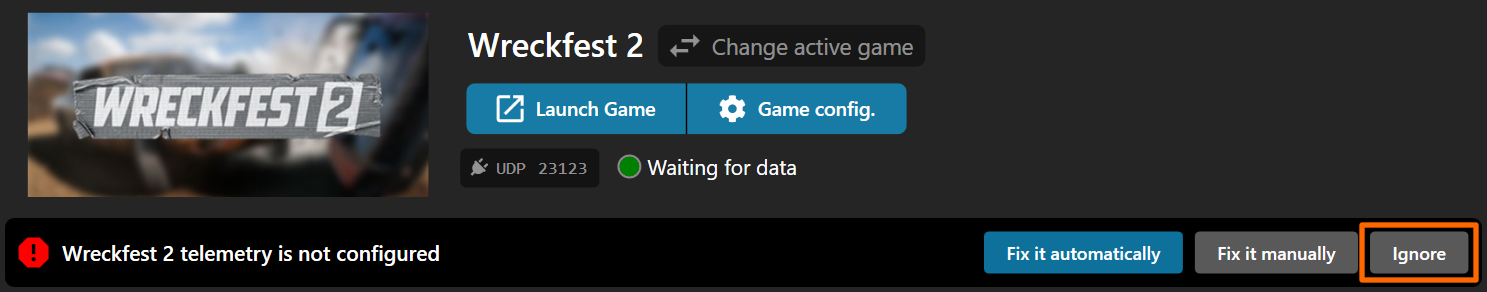

For the main window notification, click Ignore.

Tip

In some cases 23123 port might not work correctly (e.g. when it is being used by another process). Good alternative is 20778. You can also try any other free port between 1024 and 65535.

3 ForceSeatPM and game configuration

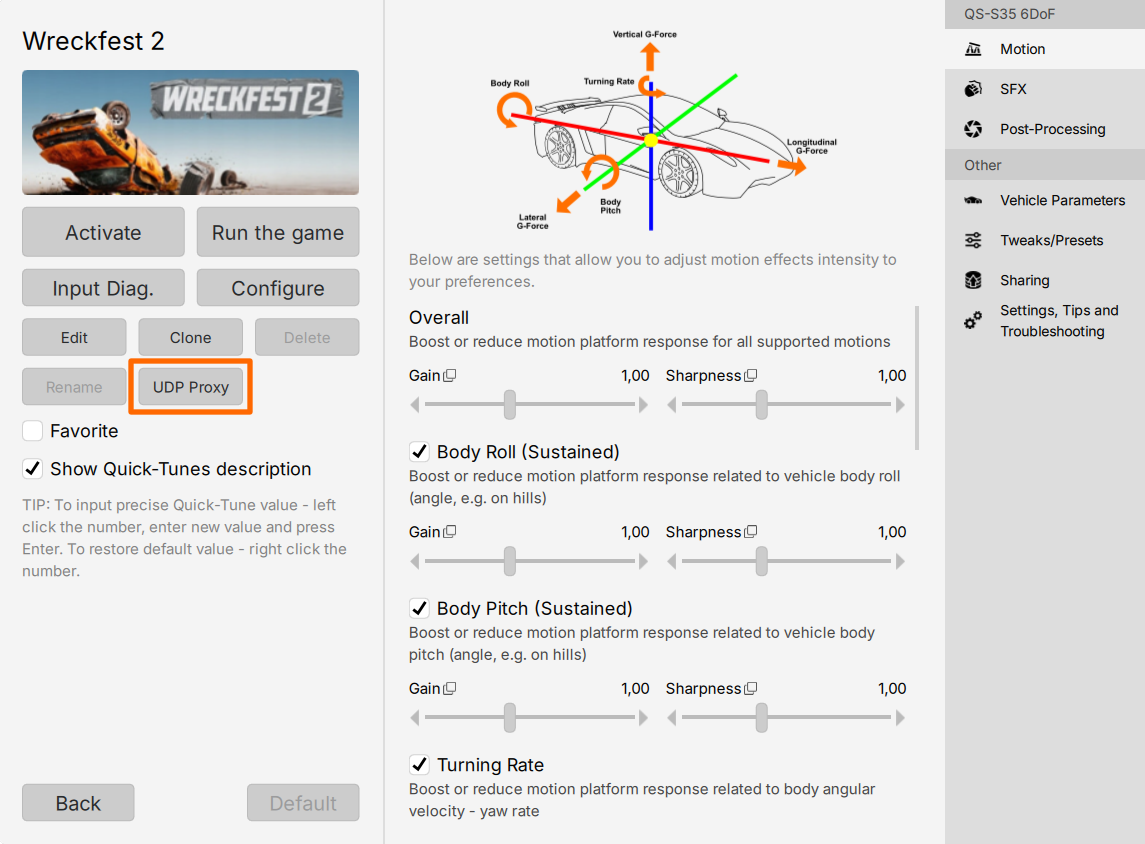

1. Open Wreckfest 2 profile details and click UDP Proxy button.

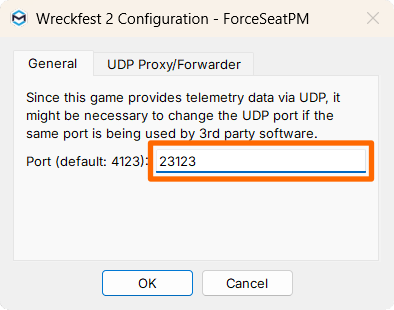

2. Check if Port in General tab is set to 23123.

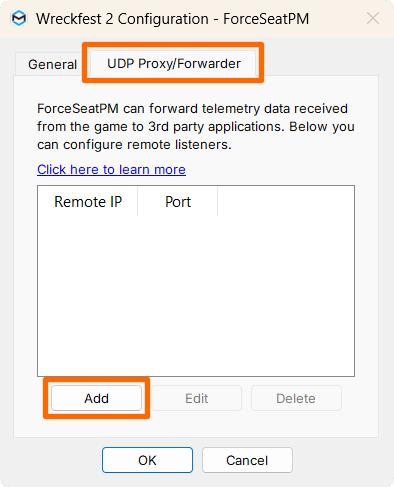

3. Switch to UDP Proxy/Fowarder tab and click Add.

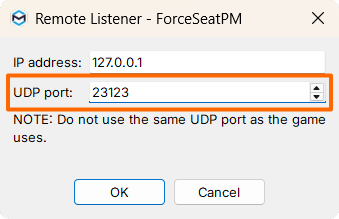

4. Enter the same UDP port which is used by SimHub (in this example it is 23123).

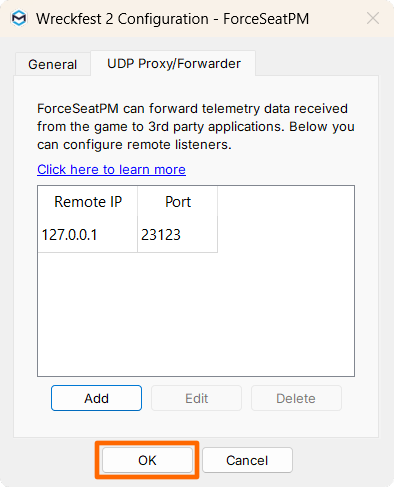

5. Click OK and confirm that the list contains the correct entry.

6. Click OK, then Save & Close. Activate Wreckfest 2 profile, start the game and verify if both SimHub and the motion platform work correctly.
