1 Introduction

ForceSeatPM uses game's telemetry data to generate a fully customizable vehicle dashboard which can be streamed to various outputs:

standalone USBD480 DIY display
USBD480 display embedded in steering wheel
standalone VoCore Screen
VoCore Screen embedded in steering wheel
secondary monitor connected to your PC
tablet or smartphone (the dashboard is displayed in web browser)

2 Selecting dashboard

Dashboards are separated from game profiles as the default dashboards are created with a vehicle type (rally, GT, F1) in mind. It is possible to use the same dashboard in multiple games. In order to change the currently used dashboard, switch to Dashboard view and then click the dashboard to activate it.

3 Tuning dashboard operation

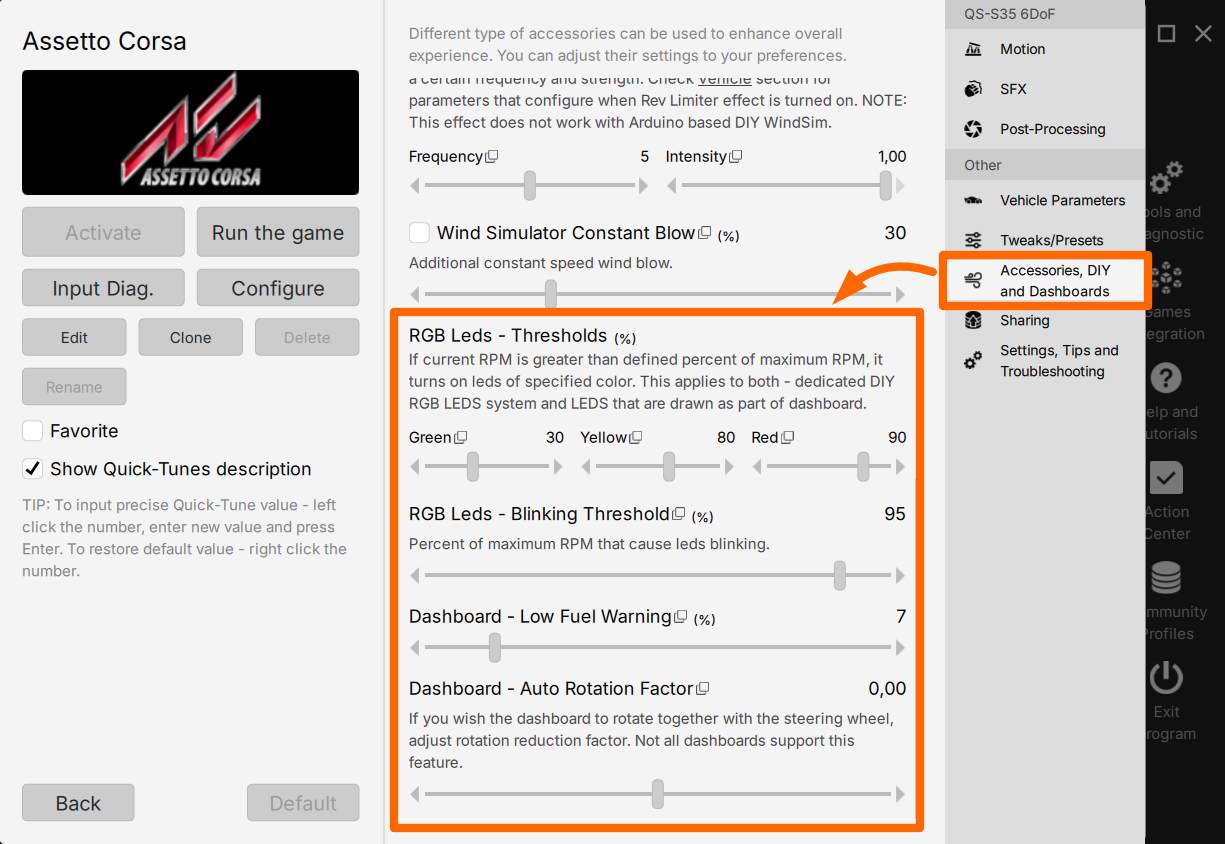

Dashboard parameters are binded to game profiles and are visible in Accessories, DIY and Dashboards section. Depending on the game's capabilities, different quick tunes options are disabled. For example, Low Fuel Warning is available only if game reports fuel capacity.

Information

For the dashboard settings to come up in profile's main window, dispaly device must be activated first.

4 Activating dashboard display on USBD480 device

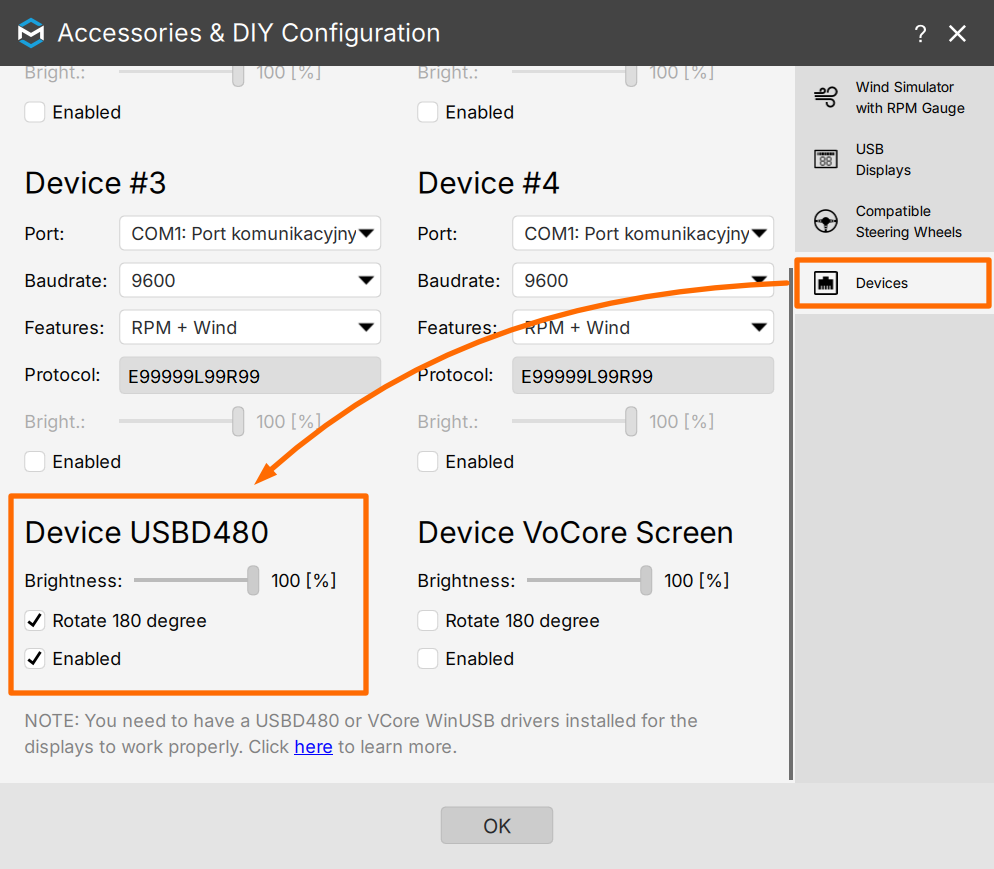

Go to Tools and Diagnostic, Accessories & DIY Configuration, then to Devices section and enable USBD480 display.

5 Activating dashboard display on VoCore Screen

You can use a steering wheel with embedded VoCore Screen in it (it must be connected via USB) or a standalone VoCore Screen (e.g. 5") together with 3d printed bracket that allows to mount it to your steering wheel base.

Information

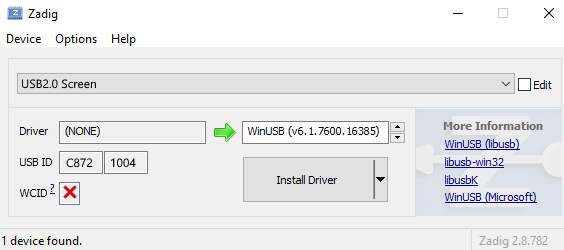

Before you can use VoCore Screen, a driver needs to be installed. Once you downloaded and unpacked the driver, start zadig.exe and click Install driver. The process will take a few minutes.

You can download drivers from our mirror or from official webpage.

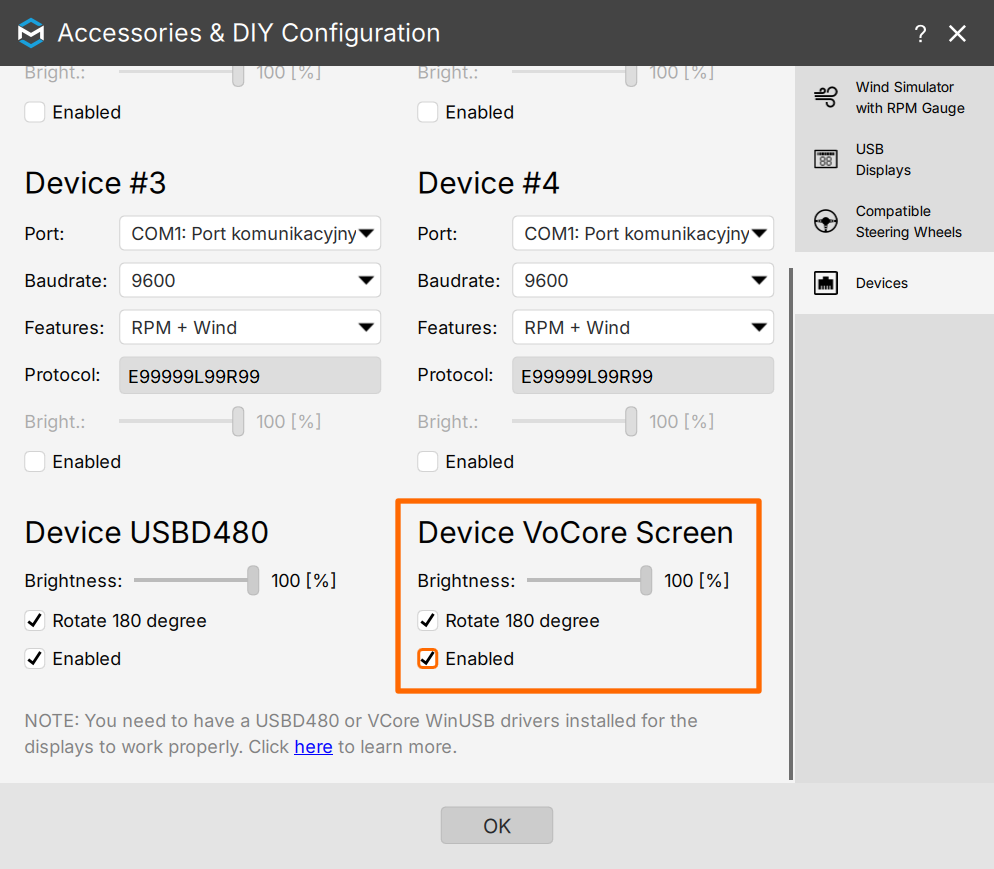

Once the display is connected and drivers are installed, go to Tools and Diagnostic, Accessories & DIY Configuration, then to Devices section and enable VoCore Screen.

6 Activating dashboard display on secondary monitor

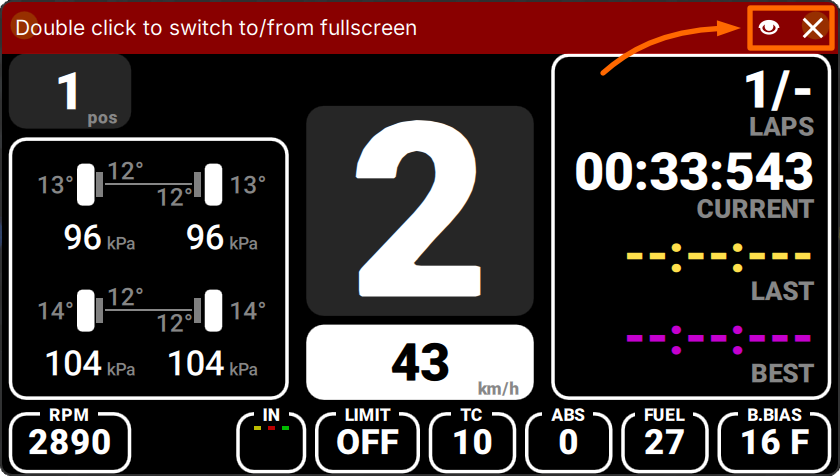

Go to Tools and Diagnostic, open Dashboard Window, move the window to desired monitor and double-click it to switch to full screen. If you want to switch back to windowed mode, double-click it once again.

If you want to run the dashboard window on top of the game on a single monitor - click the Eye icon and drag the window to a designated spot.

7 Displaying dashboard in the web browser (smartphone)

Go to Tools and Diagnostic, Software Configuration and make sure that web interface is enabled. Scan the QR code or type in the URL address to open the web interface in the browser on your tablet or smartphone.

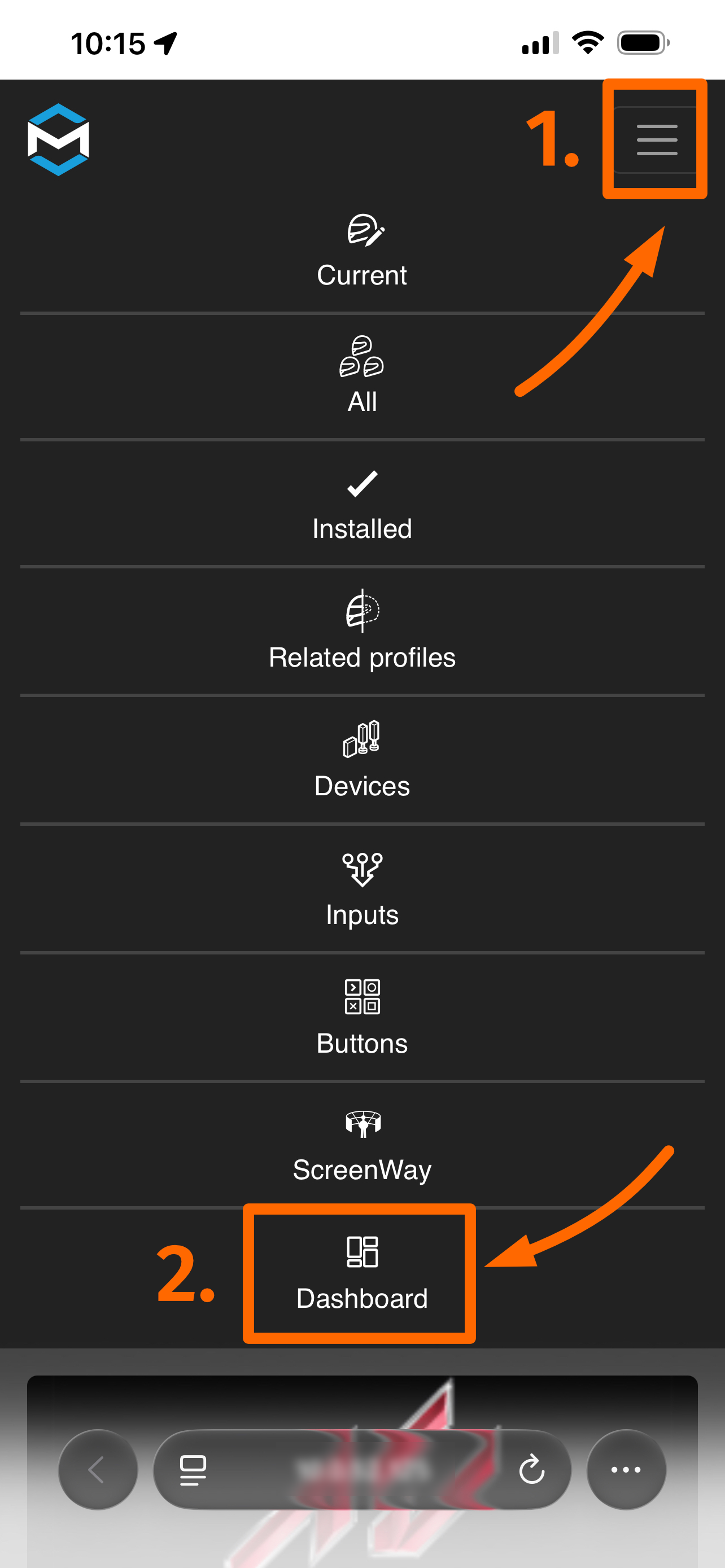

In your mobile device click the (1.) Menu icon and select (2.) Dashboard.

Information

Make sure that your Windows firewall does not block incoming connections and that your PC and tablet/smartphone are in the same local network.
